POWER OUTER MIRROR SYSTEM WIRING DIAGRAM

id091200520700

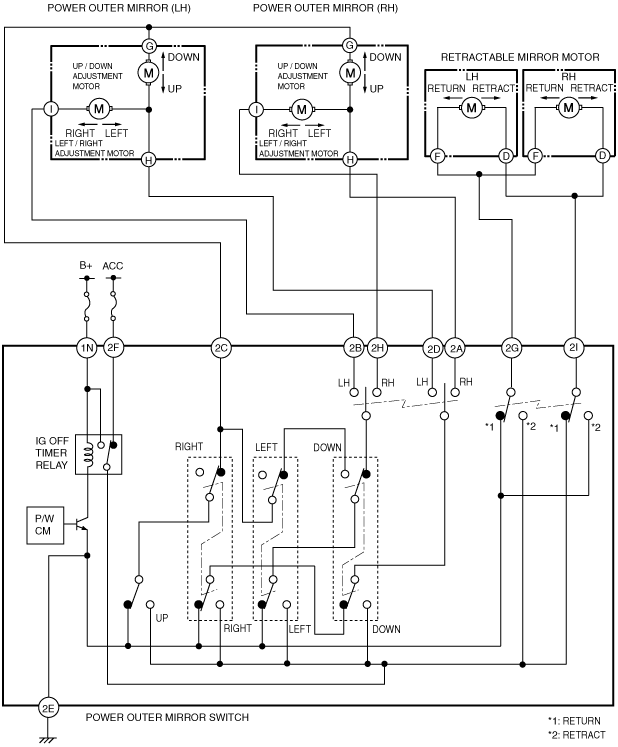

With Retract/Return Function

L.H.D.

am3zzn00002385

R.H.D.

Power window auto-open/close function for (all windows / front windows)

am3zzn00002385

Power window auto-open/close function for driver’s window

am3zzn00003137

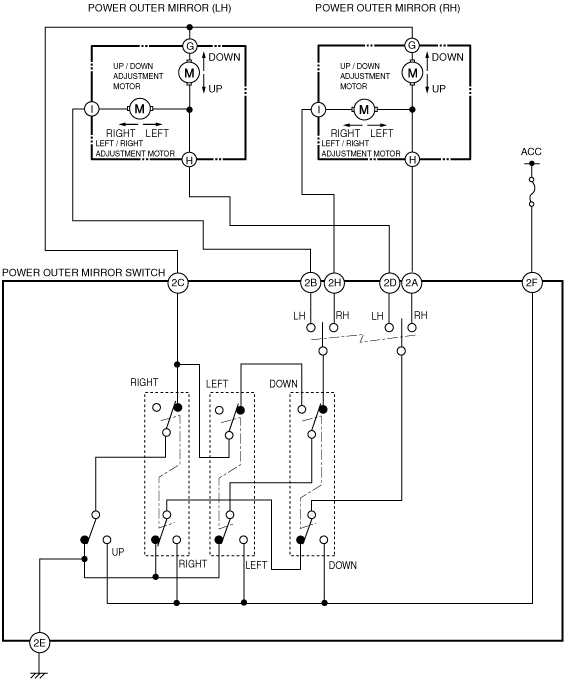

Without Retract/Return Function

L.H.D.

am3zzn00002802

R.H.D.

Power window auto-open/close function for (all windows / front windows)

am3zzn00002802

Auto-open/close function for driver’s window

am3zzn00003138
