POWER OUTER MIRROR REMOVAL/INSTALLATION

id091200802500

1.  Disconnect the negative battery cable.

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the power outer mirror connector.

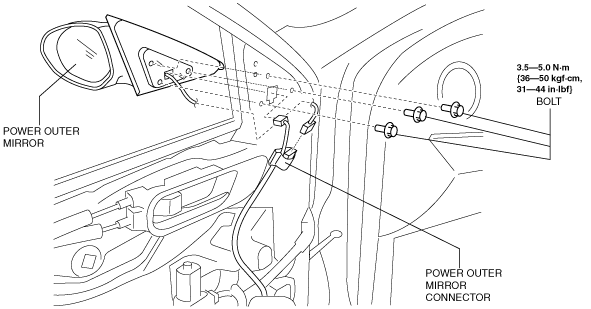

am3uuw00003630

5.  Remove the bolts.

6.  Remove the power outer mirror.

7.  Install in the reverse order of removal.
