POWER SEAT SYSTEM CONSTRUCTION/OPERATION
id091300100500
• The power seat system is equipped with the following functions:
-
― Seat slide
― Seat recliner
― Front tilt
― Rear tilt
― Lumbar support
• The slide, front tilt and rear tilt switches are all operated by use of a single switch knob.
L.H.D.

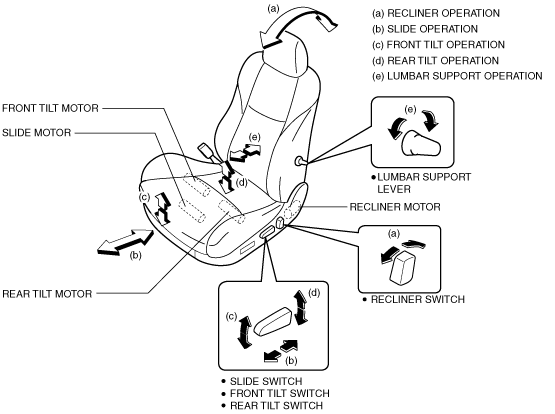

R.H.D.
