SEAT WARMER SWITCH REMOVAL/INSTALLATION

id091300801200

L.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)

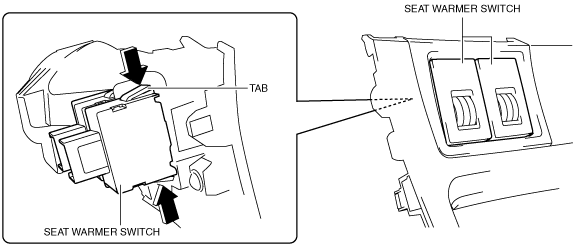

3.  Squeeze the tabs of seat warmer switch and pull it outward to remove it.

am3zzw00005832

4.  Remove the seat warmer switch.

5.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)

3.  Squeeze the tabs of seat warmer switch and pull it outward to remove it.

am3zzw00005833

4.  Remove the seat warmer switch.

5.  Install in the reverse order of removal.
