ADVANCED KEY BATTERY POWER STATUS INSPECTION

id091400112800

Note

•  Because the advanced key battery power cannot be determined using the battery itself, determine by the advanced key battery low warning operation conditions.

Operation procedure for advanced key battery low warning

1.  Place the advanced key inside the vehicle and close all of the doors.

2.  Switch the ignition ON (engine off) and wait approx. 30 s.

3.  With the brake pedal not depressed, switch the ignition off (LOCK).

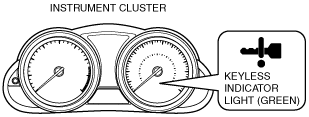

4.  Verify that the KEY indicator light (green) in the instrument panel is not flashing.

am3zzw00012956

―  KEY indicator light (green) flashes for approx. 30 s

Replace the advanced key battery because the advanced key battery power is depleted. (SEE ADVANCED KEY DISASSEMBLY/ASSEMBLY.)
