REAR OUTER HANDLE REMOVAL/INSTALLATION

id091400510200

1.  Fully close the rear door glass.

2.  Disconnect the negative battery cable.

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

4.  Remove the service hole cover.

am3uuw00002769

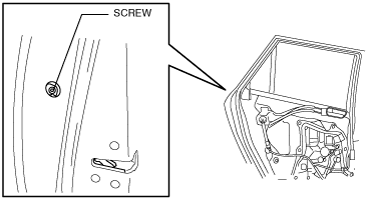

5.  Remove the screw from the service hole.

am3uuw00002809

Note

•  The screw cannot be removed because of the stopper.

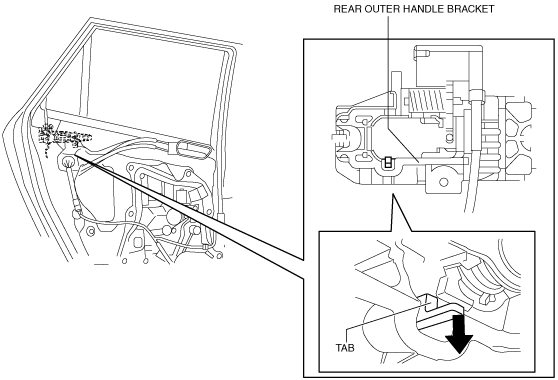

6.  Press the tab on the rear outer handle bracket in the direction of the arrow.

am3uuw00002810

7.  Maintaining the condition in procedure 6, remove the outer handle garnish.

am3uuw00002811

8.  Remove the rear outer handle.

am3uuw00002812

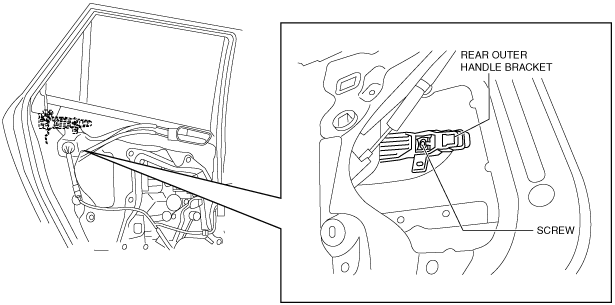

9.  Loosen the screw.

am3uuw00002813

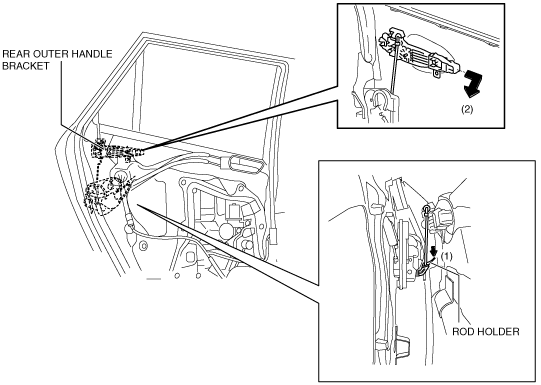

10.  Press down the rod holder in the direction of arrow (1) and remove the rear outer handle bracket in the direction of arrow (2).

am3uuw00002814

11.  Install in the reverse order of removal.
