BONNET LATCH SWITCH INSPECTION

id091400510600

1.  Disconnect the negative battery cable.

2.  Remove the bonnet latch. (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

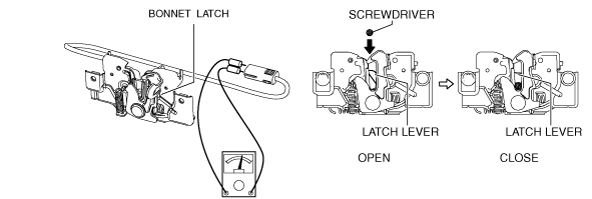

3.  Press the latch in using a flathead screwdriver to inspect the latch lever condition.

am3zzw00005174

4.   Verify that the continuity is as indicated in the table.

am2zzw00000459

•  If not as indicated in the table, replace the bonnet latch.

am3zzw00005175
