TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION

id091400513300

1.  Disconnect the negative battery cable.

2.  Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

am3uuw00003008

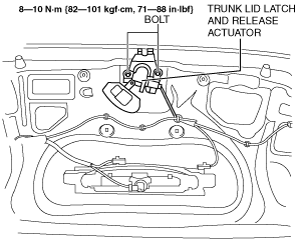

4.  Remove the bolts.

am3zzw00006168

5.  Remove the trunk lid latch and release actuator.

6.   Install in the reverse order of removal.
