KEYLESS BEEPER REMOVAL/INSTALLATION

id091400515000

1.  Disconnect the negative battery cable.

2.  Slightly bend back the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

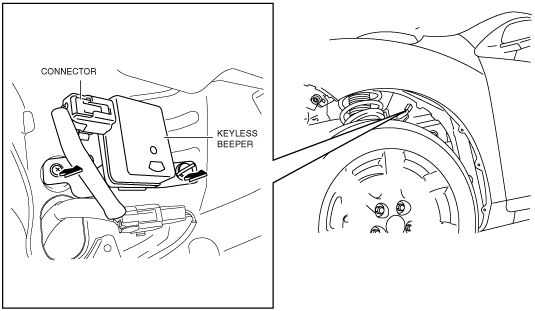

am3uuw00004338

4.  Remove the keyless beeper in the direction of the arrow shown in the figure.

5.  Install in the reverse order of removal.
