TRUNK LID OPENER SWITCH INSPECTION

id091400516400

1.  Disconnect the negative battery cable.

2.  Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

3.  Remove the high-mount brake light. (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)

4.  Remove the trunk lid opener switch. (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION.)

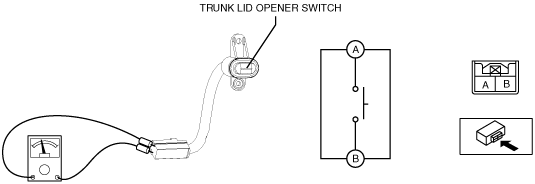

5.  Verify the continuity of trunk lid opener switch terminals A and B.

am3zzw00006176

6.  Verify that the continuity is as indicated in the table.

am3uuw00004311
