FRONT DOOR LATCH AND LOCK ACTUATOR CONSTRUCTION


id091400591000

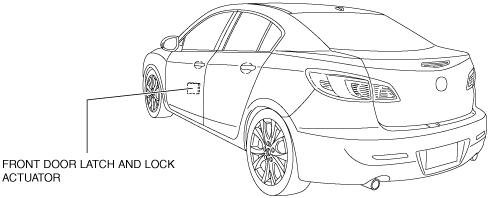

•  The front door latch and lock actuator is installed to the driver’s/passenger door.
am3zzn00002100

L.H.D.

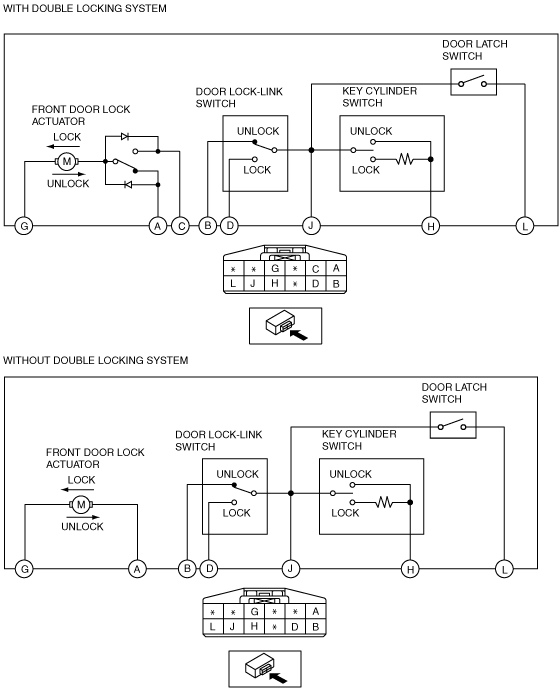

LH

am3zzn00002340

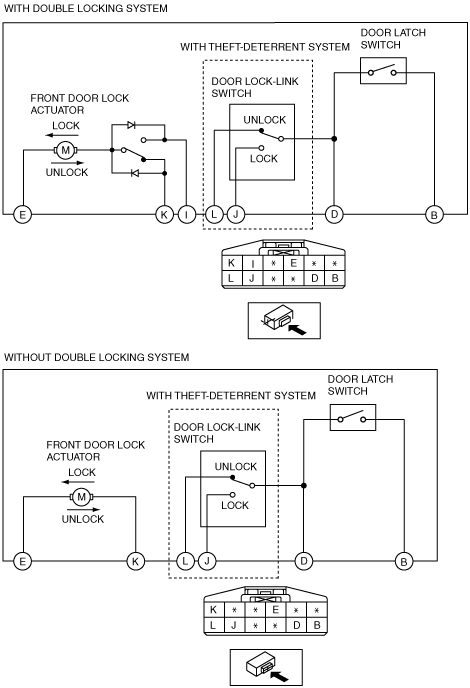

RH

am3zzn00002341


R.H.D.

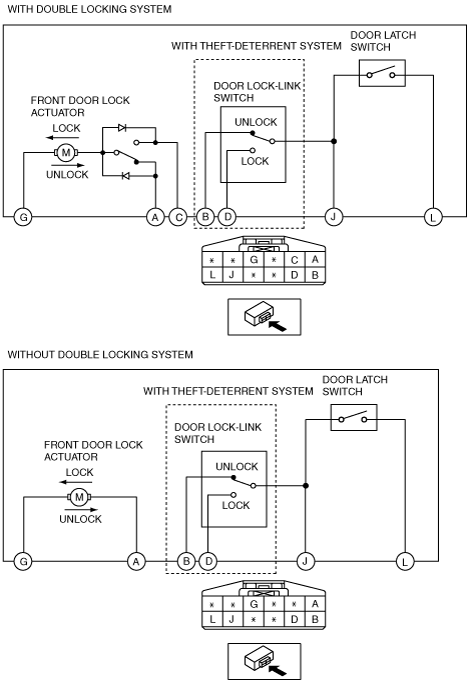

LH

am3zzn00002342

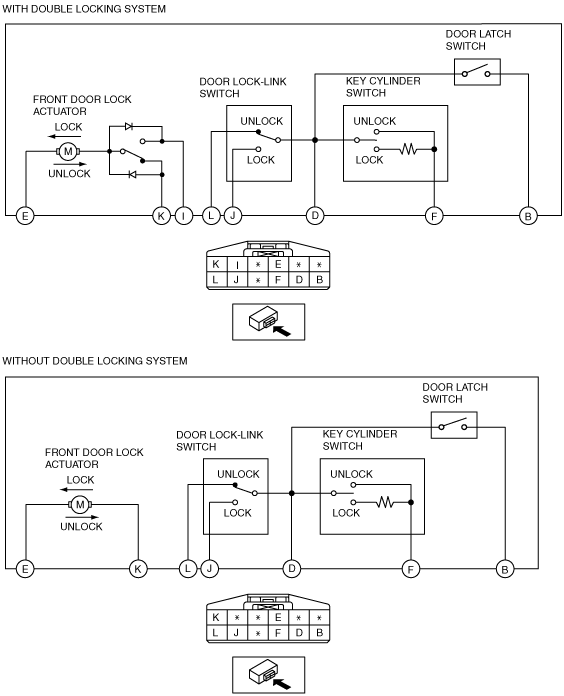

RH

am3zzn00002343
