REAR DOOR LATCH AND LOCK ACTUATOR CONSTRUCTION

REAR DOOR LATCH AND LOCK ACTUATOR CONSTRUCTION

id091400591800

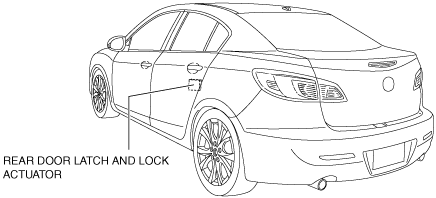

• The rear door latch and lock actuator is installed to the rear door (LH, RH).

am3zzn00002102

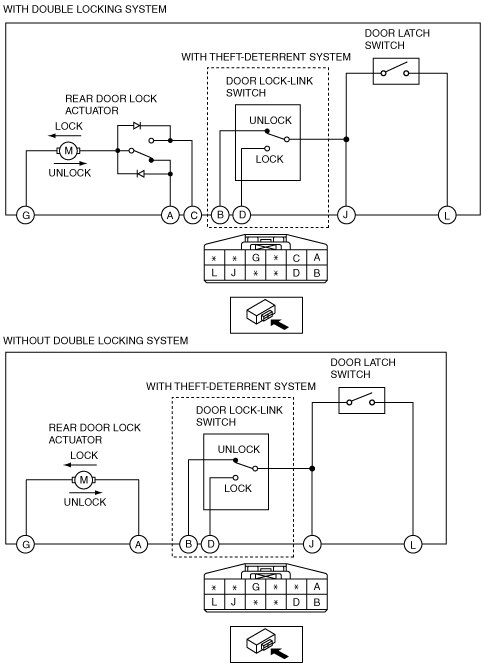

LH

am3zzn00002345

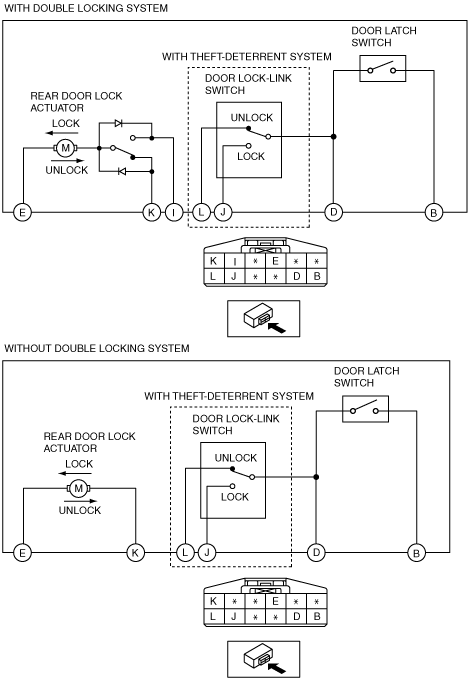

RH

am3zzn00002346
