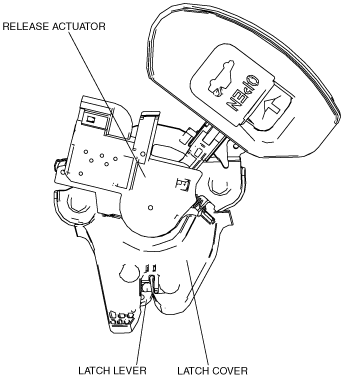

•  Installed on the trunk lid.

•  The trunk lid latch and release actuator performs the latch lever open operation.

•  The trunk lid opens when the trunk lid latch opens.

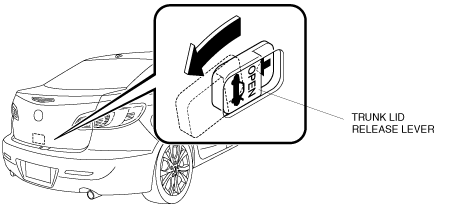

•  A trunk lid latch release lever has been adopted which enables manual release of the trunk lid latch in case the trunk lid cannot be unlocked due to a dead battery or a malfunction in the electrical system.

am3uun00001093

•  If the trunk lid cannot be opened for reasons such as a dead battery or a malfunction in the electrical system, the trunk lid can be opened using the trunk lid release lever, which releases the trunk lid latch manually.

•  When an open signal is sent from the BCM to the trunk lid release actuator, the actuator performs the trunk lid latch open operation. At the same time, the trunk lid lifts away via the spring force of the trunk lid weatherstrip and stopper rubber.
