THEFT-DETERRENT SYSTEM OPERATION [WITH INTRUDER SENSOR]
id0914005994b7

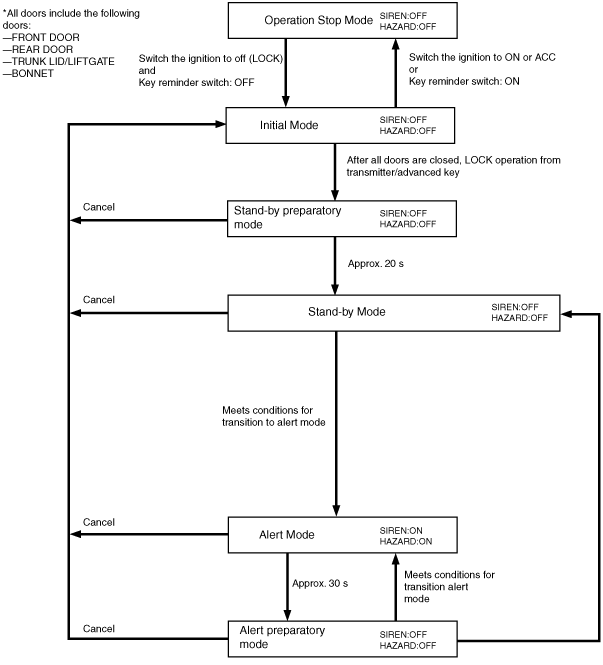

Mode Transition
• The BCM switches the theft-deterrent system mode based on the push button start and door conditions.
Operation Stop Mode
• In this mode, all theft-deterrent system operations are stopped.
• The system changes to the operation stop mode when any of the following conditions are met.
-
― Switch the ignition to ON
― Key reminder switch ON or ACC
Initial Mode
• This mode is the preparatory mode before changing to the stand-by mode. The system does not change directly to the alert mode from this mode.
Transition condition to the initial mode
-
• The system changes from the operation stop mode to the initial mode if all of the following conditions are met.
-
― Switch the ignition to off (LOCK)
― Key reminder switch off
-
• The system transitions from stand-by preparatory mode, stand-by mode, alert mode, and alert preparatory mode to the initial mode if the cancel conditions in each mode are met.
Transition condition to the stand-by preparatory mode
-
• The system changes to the stand-by preparatory mode if any of the following conditions are met.
-
― A lock operation was performed using the transmitter/advanced key lock button with all the doors, trunk lid/liftgate, and bonnet closed.
-
Note
-
• The hazard warning lights flash once.
Stand-by preparatory mode
• This is mode prior to the stand-by mode.
• If the cancel conditions are met, the system changes to the initial mode.
Transition condition to the stand-by mode
-
• If the stand-by preparatory mode continues for approx. 20 s, the system changes to the stand-by mode1.
Cancel conditions
-
• If any of the following conditions are met, the stand-by preparation mode is canceled and the system changes to the initial mode.
-
― Any door latch switch off (door is open), or trunk lid/liftgate latch switch on (trunk lid/liftgate is open), or bonnet latch switch off (bonnet is open)
― Any door lock-link switch UNLOCK
― Key reminder switch on
― Switch the ignition to ACC or ON
― Unlock operation using transmitter/advanced key
Stand-by Mode
• The system starts monitoring approx. 20 s after the doors are locked for unauthorized door opening/closing, or movement from an intrusion into the vehicle such as a window being broken. If any unauthorized operation is detected, the system changes to the alert mode.
• If the cancel conditions are met, the system changes to the initial mode.
Transition condition to the alert mode
-
• If any of the following conditions are met, the system changes to the alert mode.
-
― Switch the ignition to ON (key reminder switch off or ACC off)
― Door latch switch off (door is open)
― Trunk lid/lifgate latch switch on (trunk lid/liftgate is open)
― Bonnet latch switch off (bonnet is open)
― Door lock-link switch UNLOCK
― Intrusion into vehicle is detected by intruder sensor
― Detects vehicle tilt using the tilt sensor
Cancel Condition
-
• If any of the following conditions are met, the stand-by mode is canceled and the system changes to the initial mode.
-
― Unlock operation using transmitter/advanced key
― Key reminder switch on, Switch the ignition to ON, and engine start
― Switch the ignition to ACC, switch the ignition to ON and engine start (advanced key)
― Trunk lid open operation using transmitter/advanced key
― Advanced key authorization, and trunk lid opener switch is on
Alert Mode

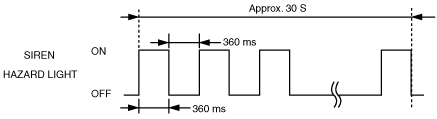

• In this mode, the siren and hazard warning lights are operated to alert the surrounding area.
• When the alarm period (approx. 30 s) has elapsed, the system changes to the alert preparatory mode.
• If the cancel conditions are met, the system changes to the initial mode.
Transition condition to the alert preparatory mode
-
• When the alarm period (approx. 30 s) has elapsed, the system changes to the alert preparatory mode.
• The alarm period is not extended even if a transition condition to alert mode is met again during an alarm period.
Cancel Condition
-
• If any of the following conditions are met, the alert mode is canceled, and the system changes to the initial mode.
-
― Unlock operation using transmitter/advanced key
― Key reminder switch on, Switch the ignition to ON, and engine start
― Switch the ignition to ACC, switch the ignition to ON and engine start (advanced key)
― Trunk lid open operation using transmitter/advanced key
― Advanced key authorization, and trunk lid opener switch is on
Alert preparatory mode
• In the alert preparatory mode, the siren and hazard warning light are not operated, however, the alarm triggers immediately if the condition is changed.
• If the cancel conditions are met, the system changes to the initial mode.
Transition condition to alert mode
-
• The system changes to the alert mode if any of the following conditions are met.
-
― Switch the ignition to ON (key reminder switch off)
― Door latch switch off (door is open)
― Trunk lid/lifgate latch switch on (trunk lid/liftgate is open)
― Bonnet latch switch off (bonnet is open)
― Door lock-link switch UNLOCK
― Intrusion into vehicle is detected by intruder sensor
― Detects vehicle tilt using the tilt sensor
Cancel Condition
-
• If any of the following conditions are met, the alert preparatory mode is canceled and the system changes to the initial mode.
-
― Unlock operation using transmitter/advanced key
― Key reminder switch on, Switch the ignition to ON, and engine start
― Switch the ignition to ACC, switch the ignition to ON and engine start (advanced key)
― Trunk lid open operation using transmitter/advanced key
― Advanced key authorization, and trunk lid opener switch is on
