TRUNK LID OPEN FUNCTION

id091400620600

• Doors are unlocked.

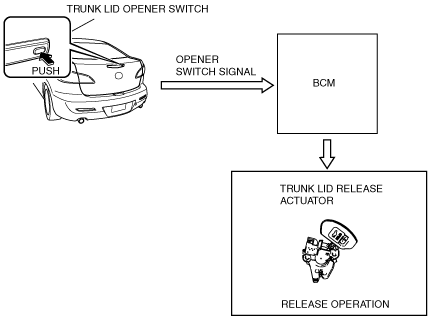

1. When the trunk lid opener switch is pressed, a opener switch signal is input to the BCM.

2. The BCM unlocks the trunk lid releases actuator (releases the latch) for approx. 1.5 s when the ignition is switched off or all the following conditions are met.

• Parking brake is applied (parking brake switch is on)(MTX).

• The selector lever is in the P position(ATX).

• Vehicle speed is 3 km/h {2 mph} or less

Note

• The trunk lid releases actuator operates to unlock approx. 1—2 s after the trunk lid opener switch is pressed.

am3uun00000853
