LIFTGATE OPEN FUNCTION

id091400620700

• Doors are unlocked.

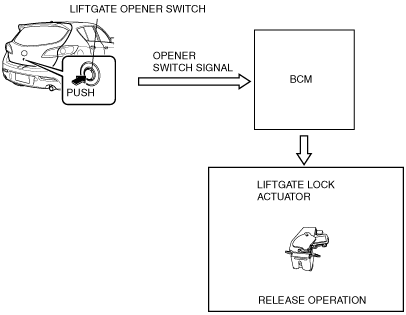

1. When the liftgate opener switch is pressed, a opener switch signal is input to the BCM.

2. The BCM unlocks the liftgate lock actuator(releases the latch) for approx. 1.5 s when the ignition is switched off or all the following conditions are met.

• Parking brake is applied (parking brake switch is on)(MTX)

• The selector lever is in the P position(ATX)

• Vehicle speed is 3 km/h or less

Note

• The liftgate lock actuator operates to unlock approx. 1—2 s after the liftgate opener switch is pressed.

am3uun00000854
