SUNROOF MOTOR INSPECTION

id091500801100

1.  Measure the voltage at each terminal.

•  If not as specified, inspect the parts listed under “Inspection item” and the related wiring harnesses.

―  If the parts and wiring harnesses are normal but the system still does not work properly, replace the sunroof motor.

Terminal Voltage Table (Reference)

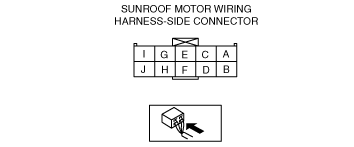

am3uuw00005117

Terminal	Signal	Connected to	Test condition	Voltage (V)	Inspection item
A	Slide open	Sunroof switch	Sunroof is fully opening.	B+	•  Sunroof switch •  Related wiring harness
			Other	1.0 or less
B	Slide close/tilt down	Sunroof switch	Sunroof is closing/tilting down.	B+	•  Sunroof switch •  Related wiring harness
			Other	1.0 or less
C	Tilt up	Sunroof switch	Sunroof is tilting up.	B+	•  Sunroof switch •  Related wiring harness
			Other	1.0 or less
D	—	—	—	—	—
E	IG2	HEATER 10 A fuse	Switch the ignition ON.	B+	•  HEATER 10 A fuse •  Related wiring harness
			Other	1.0 or less
F	Vehicle speed	Instrument cluster	Pulse signal	—	•  Instrument cluster •  Related wiring harness
G	GND	GND	Under any condition	1.0 or less	•  Related wiring harness •  GND
H	Communication signal	BCM	Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.		•  BCM •  Related wiring harness
I	—	—	—	—	—
J	Power supply	SUNROOF 15 A fuse	Under any condition	B+	•  SUNROOF 15 A fuse •  Related wiring harness
