AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION

id091600820400

1.  Lift up the vehicle.

2.  Remove the fasteners and bolts.

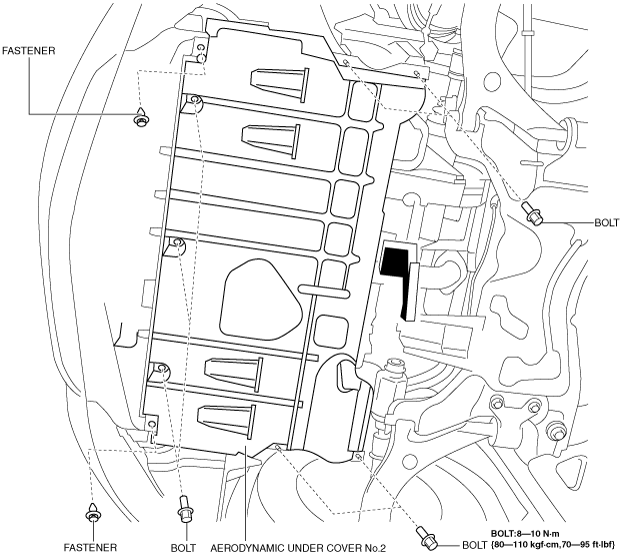

am3zzw00006106

3.  Move the aerodynamic under cover No.2 in the direction of the arrow shown in the figure.

Caution

•  Be careful not to damage the aerodynamic under cover No.2 during removal.

4.  Install in the reverse order of removal.
