SIDE PANEL REMOVAL/INSTALLATION

id091700800500

L.H.D.

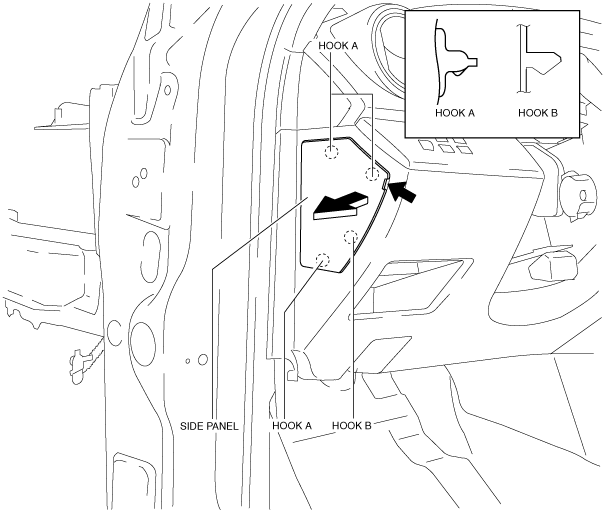

1.  Insert a tape-wrapped fastener remover into the position indicated by the arrow in the figure.

2.  Pull the side panel in the direction of the arrow shown in the figure, then remove the hooks.

am3uuw00004785

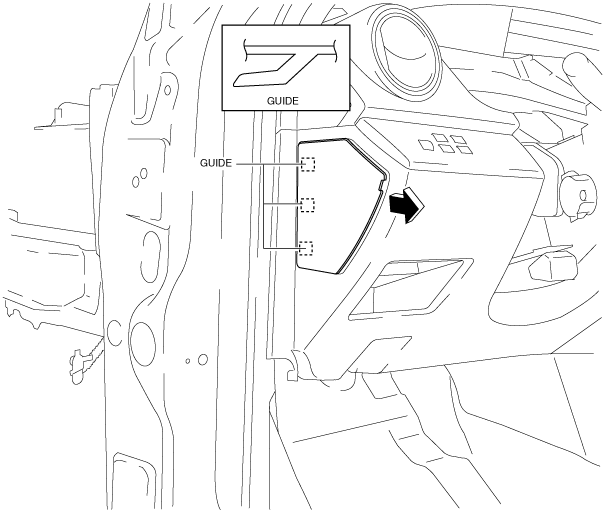

3.  Pull the side panel in the direction of the arrow shown in the figure, while detaching the guides.

am3uuw00004786

Caution

•  When pulling out the side panel, be careful not to damage the tab.

4.  Install in the reverse order of removal.

R.H.D.

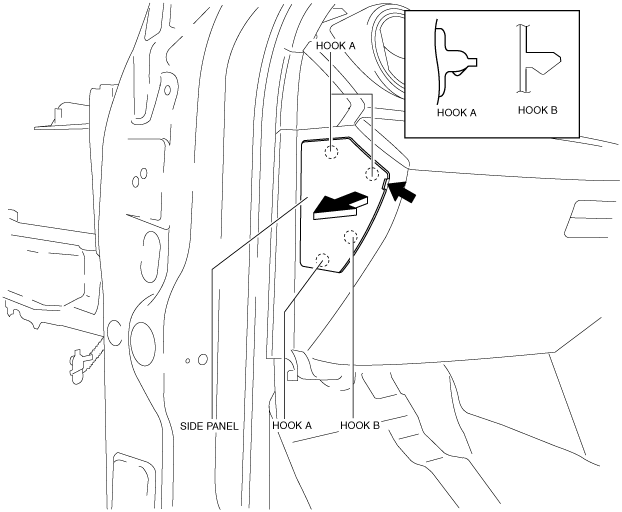

1.  Insert a tape-wrapped fastener remover into the position indicated by the arrow in the figure.

2.  Pull the side panel in the direction of the arrow shown in the figure, then remove the hooks.

am3zzw00005842

3.  Pull the side panel in the direction of the arrow shown in the figure, while detaching the guides.

am3zzw00005843

Caution

•  When pulling out the side panel, be careful not to damage the tab.

4.  Install in the reverse order of removal.
