GLOVE COMPARTMENT REMOVAL/INSTALLATION

id091700800700

Caution

•  If the glove compartment is closed without being joined to the stay damper, the stay damper may be damaged. Verify that the stay damper is joined to the glove compartment before closing the glove compartment.

L.H.D.

1.  Pull the stay damper in the direction (1) shown in the figure, and detach the hook A between the glove compartment and the stay damper.

2.  Pull up the hook B in the direction of arrow (2) and remove it in the direction of arrow (3) shown in the figure.

3.  Lower the glove compartment.

4.  Detach the hook C from the dashboard and remove the glove compartment.

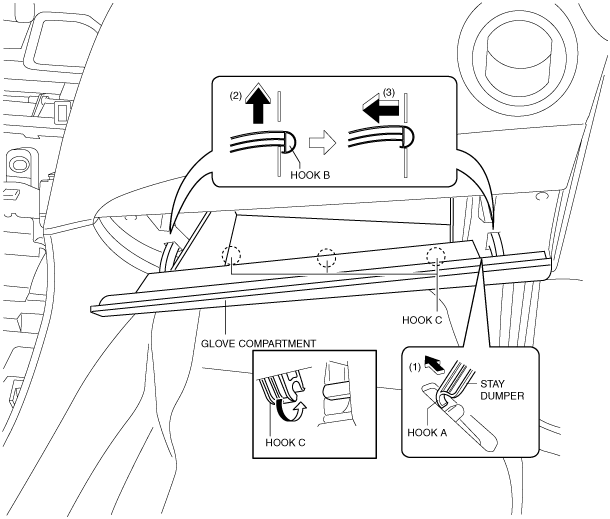

am3uuw00004794

5.  Install in the reverse order of removal.

R.H.D.

1.  Pull the stay damper in the direction (1) shown in the figure, and detach the hook A between the glove compartment and the stay damper.

2.  Pull up the hook B in the direction of arrow (2) and remove it in the direction of arrow (3) shown in the figure.

3.  Lower the glove compartment.

4.  Detach the hook C from the dashboard and remove the glove compartment.

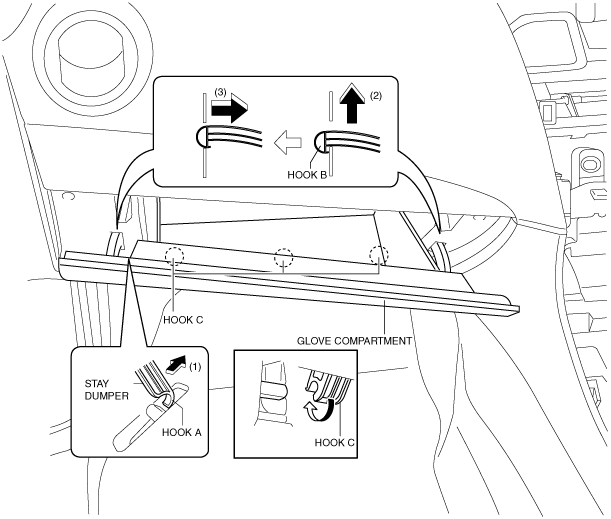

am3zzw00005844

5.  Install in the reverse order of removal.
