TRUNK END TRIM REMOVAL/INSTALLATION

id091700803400

4SD

1.  Remove the trunk mat. (See TRUNK BOARD REMOVAL/INSTALLATION)

2.  Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION)

3.  Remove the fasteners.

4.  Pull the trunk end trim indicated in the arrow shown in the figure, then detach clips A, pins B, pin C, D and tabs E.

am3uuw00004784

5.  Remove the trunk end trim.

6.  Install in the reverse order of removal.

5HB

1.  Remove the trunk mat. (See TRUNK BOARD REMOVAL/INSTALLATION)

2.  Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION)

3.  Remove the fasteners.

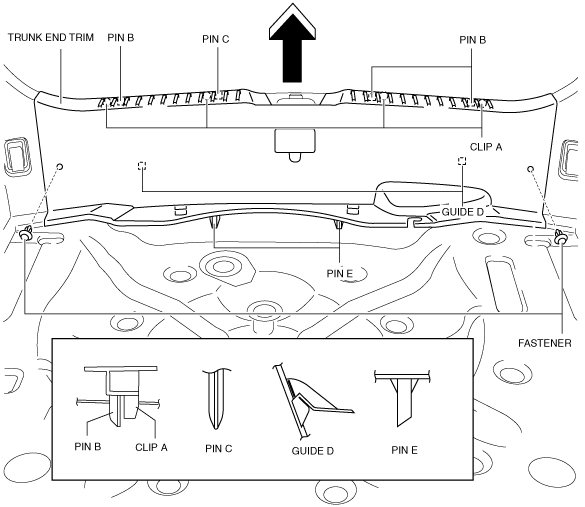

4.  Pull the trunk end trim indicated in the arrow shown in the figure, then detach clips A, pins B, pin C, guides D and pins E.

am3uuw00004799

5.  Remove the trunk end trim.

6.  Install in the reverse order of removal.
