LIFTGATE UPPER TRIM REMOVAL/INSTALLATION

id091700803600

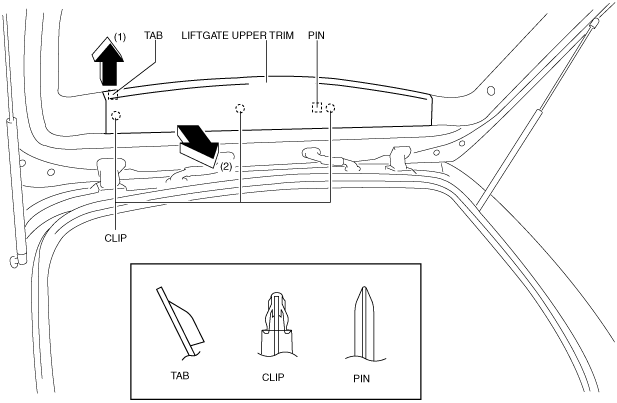

1.  Detach tab while pulling the liftgate upper trim in the direction of the arrow (1) shown in the figure, then detach clips and pin while pulling in the direction of the arrow (2).

am3uuw00004875

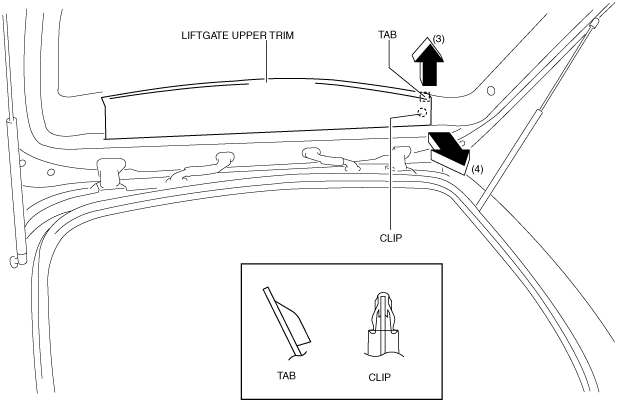

2.  Detach tab while pulling the liftgate upper trim in the direction of the arrow (3) shown in the figure, then detach clip while pulling in the direction of the arrow (4).

am3uuw00004876

3.  Remove the liftgate upper trim.

4.  Install in the reverse order of removal.
