VENTILATOR GRILLE REMOVAL/INSTALLATION

id091700804600

Side Ventilator grille

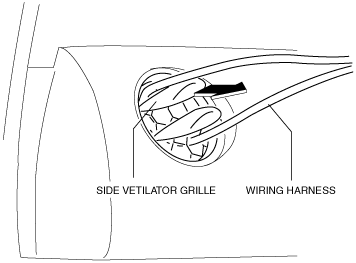

1.  Through the wiring harness into the position shown in the figure, remove the side ventilator grille in the direction of arrow.

am3uuw00004711

2.  When installing the side ventilator grille, push it for the dashboard.

Center Ventilator grille

1.  Disconnect the negative battery cable.

2.  Remove the center panel. (See CENTER PANEL REMOVAL/INSTALLATION)

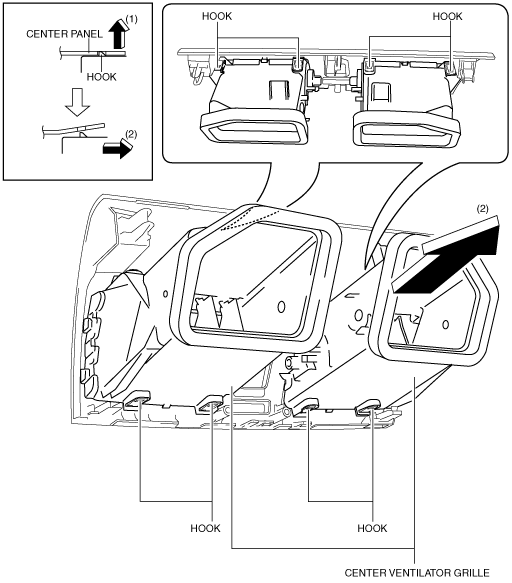

3.  Push the edge of center panel in the direction of arrow (1) and detach the hook.

4.  Remove the ventilator grille in the direction of arrow (2) shown in the figure.

am3zzw00006580

5.  Install in the reverse order of removal.
