FUEL-FILLER LID OPENER BEZEL REMOVAL/INSTALLATION

id091700899000

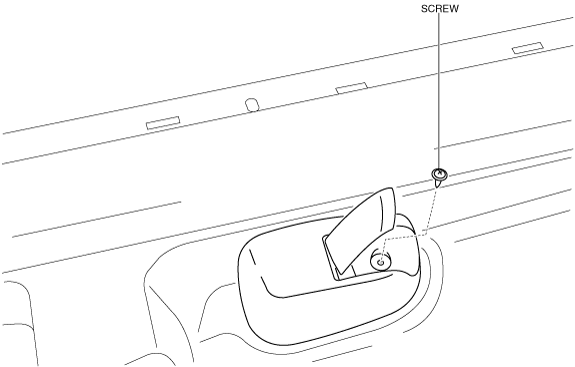

1.  Remove the screw.

am6zzw00001735

2.  Pull the fuel-filler lid opener bezel in the direction of the arrow (1) then remove the tab.

3.  Move the fuel-filler lid opener bezel in the direction of the arrow (2) shown in the figure.

am3zzw00006587

4.  Remove the fuel-filler lid opener bezel.

5.  Install in the reverse order of removal.
