INTRUDER SENSOR COVER REMOVAL/INSTALLATION

id091700910100

Vehicles Without Sunroof System

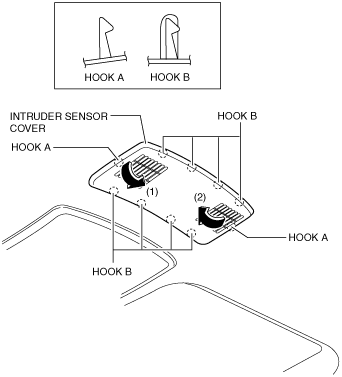

1.  Pull the intruder sensor cover in the direction of arrow (1), (2) shown in the figure while detach the hooks A and B.

am3zzw00006182

2.  Remove the intruder sensor cover.

3.  Disconnect the intruder sensor connector.

4.  Install in the reverse order of removal.

Vehicles With Sunroof System

1.  Pull the intruder sensor cover in the direction of arrow (1), (2) shown in the figure while detach the hooks A and B.

am3zzw00006183

2.  Remove the intruder sensor cover.

3.  Disconnect the intruder sensor connector.

4.  Install in the reverse order of removal.
