LICENSE PLATE LIGHT REMOVAL/INSTALLATION

id091800801100

1.  Disconnect the negative battery cable.

2.  Remove the lens. (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.)

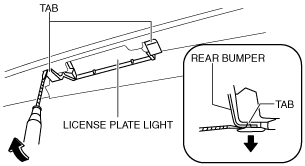

3.  Insert a tape-wrapped fastener remover to the position shown in the figure, release the tabs.

am3uuw00005402

4.  Pull the rear bumper in the direction of the arrow (1) in the figure, and pull out the license plate lights in the direction of the arrow (2).

am3uuw00005403

5.  Pull out the wiring harness in the direction of the arrow and set it aside from the hook.

am3uuw00004383

6.  Remove the license plate light.

7.  Install in the reverse order of removal.
