CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION

id091800801700

1.  Disconnect the negative battery cable.

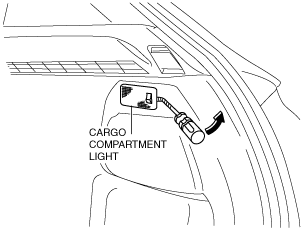

2.  Insert a tape-wrapped flathead screwdriver into the service hole and pry with the screwdriver in the direction shown by the arrow to remove the cargo compartment light.

am3uuw00004904

3.  Disconnect the connector.

am3uuw00003173

4.  Remove the cargo compartment light.

5.  Install in the reverse order of removal.
