LIGHT SWITCH INSPECTION

id091800802900

Vehicles Without Auto Light System

1. Disconnect the negative battery cable.

2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

4. Verify that the continuity between the light switch terminals is as indicated in the table.

• If not as indicated in the table, replace the light switch.

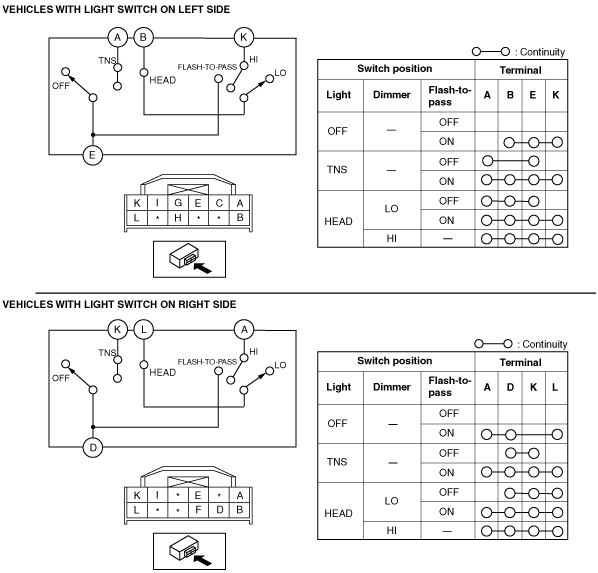

Headlight Switch

am3zzw00007728

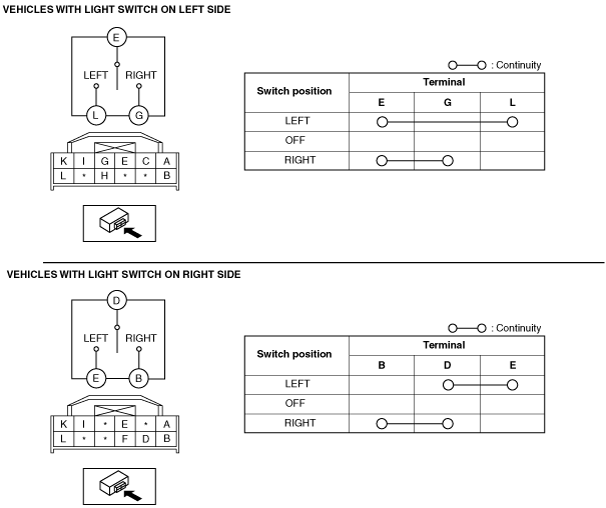

Turn Light

am3zzw00007729

Vehicles With Auto Light System
