INBOARD LIGHT BULB REMOVAL/INSTALLATION

id091800806000

With Rear Fog Light

4SD

1.  Disconnect the negative battery cable.

2.  Remove the trunk rid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

am3uuw00005389

4.  Rotate the socket in the direction of the arrow as shown in the figure to remove it.

am3uuw00002822

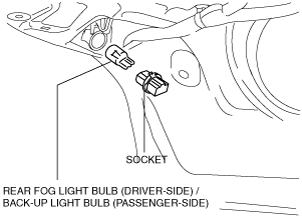

5.  Remove the rear fog light bulb (driver-side)/back-up light bulb (passenger-side).

am3zzw00006512

6.  Install in the reverse order of removal.

5HB

1.  Disconnect the negative battery cable.

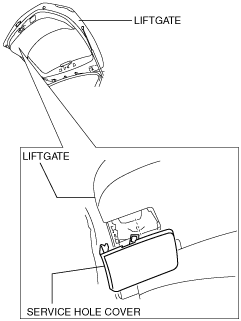

2.  Remove the service hole cover.

am3uuw00005390

3.  Disconnect the connector.

am3uuw00005391

4.  Rotate the socket in the direction of the arrow as shown in the figure to remove it.

am3uuw00005392

5.  Remove the rear fog light bulb (driver-side)/back-up light bulb (passenger-side).

am3zzw00006932

6.  Install in the reverse order of removal.

Without Rear Fog Light

4SD

1.  Disconnect the negative battery cable.

2.  Remove the trunk rid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

am3uuw00005389

4.  Rotate the socket in the direction of the arrow as shown in the figure to remove it.

am3uuw00002822

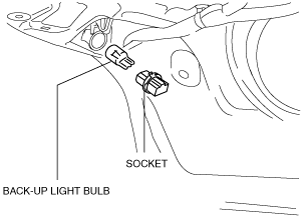

5.  Remove the back-up light bulb.

am3zzw00007841

6.  Install in the reverse order of removal.

5HB

1.  Disconnect the negative battery cable.

2.  Remove the service hole cover.

am3uuw00005390

3.  Disconnect the connector.

am3uuw00005391

4.  Rotate the socket in the direction of the arrow as shown in the figure to remove it.

am3uuw00005392

5.  Remove the back-up light bulb.

am3zzw00007842

6.  Install in the reverse order of removal.
