INBOARD LIGHT REMOVAL/INSTALLATION

id091800806100

4SD

1.  Disconnect the negative battery cable.

2.  Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

am3uuw00005384

4.  Remove the nut.

5.  Remove the bracket.

6.  Remove the inboard light as shown in the figure.

am3uuw00005582

7.  Install in the reverse order of removal. (See Inboard Light Installation Note.)

5HB

1.  Disconnect the negative battery cable.

2.  Remove the service hole cover.

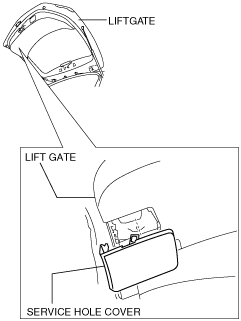

am3uuw00005386

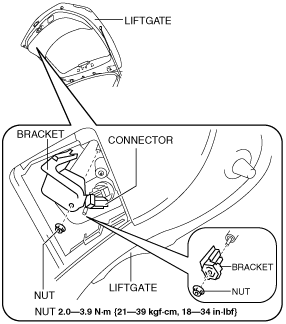

3.  Disconnect the connector.

am3uuw00005387

4.  Remove the nut.

5.  Remove the bracket.

6.  Remove the inboard light as shown in the figure.

am3uuw00005583

7.  Remove the request switch. (With Advanced keyless entry and push button start system) (See REQUEST SWITCH REMOVAL/INSTALLATION.)

8.  Install in the reverse order of removal. (See Inboard Light Installation Note.)

Inboard Light Installation Note

4SD

1.  Push the bracket onto the trunk lid as shown in the figure and install.

am3zzw00009792

5HB

1.  Push the bracket into the liftgate as shown in the figure and install.

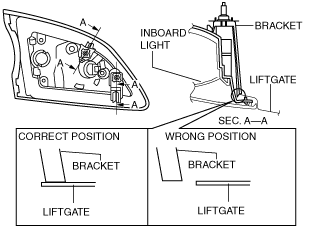

am3zzw00009793
