FOOT LIGHT REMOVAL/INSTALLATION


id091800809200


Driver-side

1.  Disconnect the negative battery cable.

2.  Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

4.  Rotate the foot light in the direction of the arrow shown in the figure.

am3uuw00004905

5.  Remove the foot light.

6.  Install in the reverse order of removal.


Passenger-side

1.  Disconnect the negative battery cable.

2.  Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

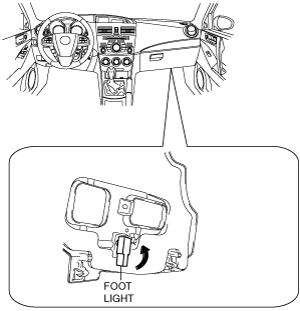

3.  Rotate the foot light in the direction of the arrow shown in the figure.

am3uuw00005411

4.  Remove the foot light.

5.  Install in the reverse order of removal.
