AFS (ADAPTIVE FRONT LIGHTING SYSTEM) OFF SWITCH INSPECTION

id091800813100

1.  Disconnect the negative battery cable.

2.  Remove the AFS OFF switch. (See AFS (ADAPTIVE FRONT LIGHTING SYSTEM) OFF SWITCH REMOVAL/INSTALLATION.)

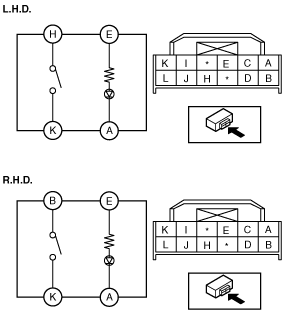

3.  Verify that the continuity between the AFS OFF switch terminals is as indicated in the table.

am3zzw00006476

•  If the continuity is not as indicated in the table, replace the AFS OFF switch.

am3zzw00006475

4.  Apply battery positive voltage to AFS OFF switch terminal E, and connect terminal A to ground.

5.  Verify that the LED illuminates.

•  If there is any malfunction, replace the AFS OFF switch.
