RAIN SENSOR CONSTRUCTION/OPERATION

id091900101500

Warning

•  If vehicle servicing such as car washing is performed with the ignition switch turned to the ON position, and the wiper and washer switch is in the AUTO position, the windshield wipers may operate automatically. Always turn the ignition switch, and the wiper and washer switch off before performing servicing such as the car washing; otherwise a pinched hand or fingers could result in injury or a wiper system malfunction.

Caution

•  In the following cases, the rain sensor cannot detect the rainfall amount correctly which could cause a windshield wiper malfunction:

―  A sticker or label is adhered to the windshield above the rain sensor.

―  The windshield is dirty above the rain sensor.

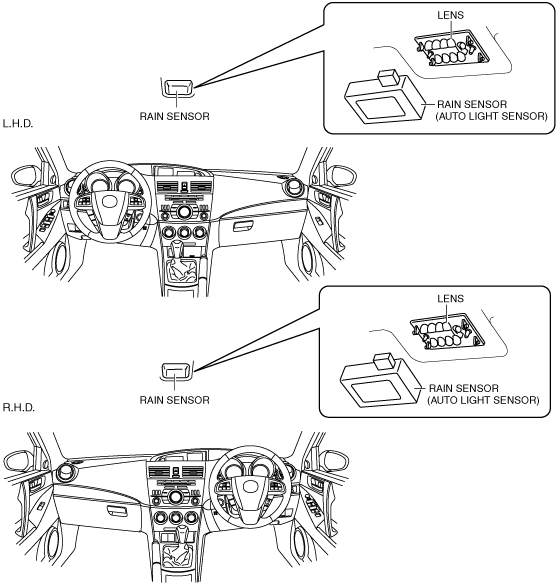

•  The rain sensor is installed to the lens which is installed to top center area of the windshield.

am3zzn00002799
