WIPER AND WASHER SWITCH REMOVAL/INSTALLATION

id091900800200

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Disconnect the wiper and washer switch connector.

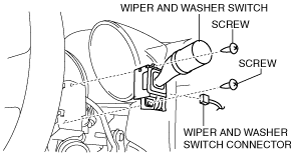

Vehicles with wiper and washer switch on right side

am3uuw00002765

Vehicles with wiper and washer switch on left side

am3uuw00002766

4.  Remove the screws.

5.  Remove the wiper and washer switch.

6.  Install in the reverse order of removal.
