WASHER TANK REMOVAL/INSTALLATION

id091900801700

Vehicles With The Washer Fluid-level Sensor

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

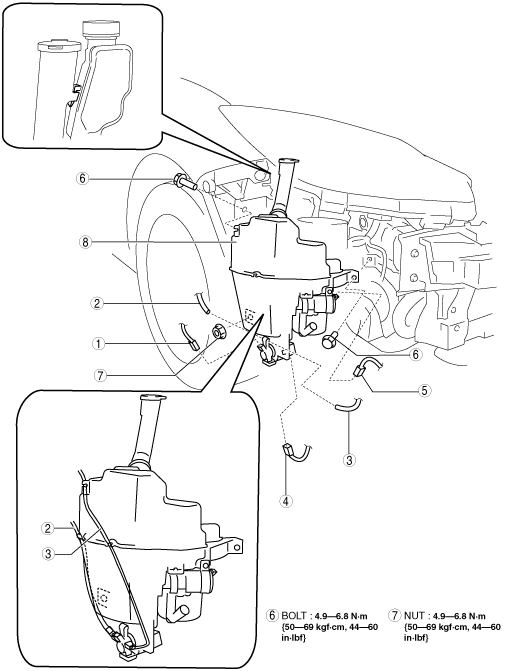

am3zzw00005313

1	Washer motor connector
2	Windshield washer hose
3	Rear washer hose (Vehicles with rear washer system)
4	Washer fluid-level sensor connector
5	Headlight cleaner motor connector
6	Bolt
7	Nut
8	Washer tank

4.  Install in the reverse order of removal.

Vehicles Without The Washer Fluid-level Sensor

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

am3zzw00005311

1	Washer motor connector
2	Windshield washer hose
3	Rear washer hose (Vehicles with rear washer system)
4	Nut
5	Bolt
6	Washer tank

4.  Install in the reverse order of removal.
