CAR-NAVIGATION SYSTEM STRUCTURAL VIEW

id092000100900

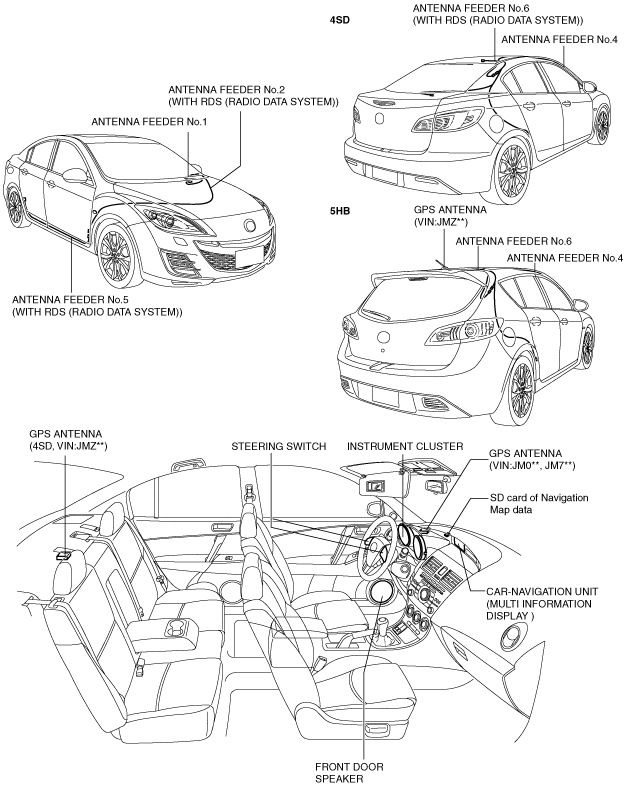

Structural View

Note

• Car-navigation unit is integrated with the multi information display.

• GPS antenna is integrated with the center roof antenna. (5HB, VIN:JMZ**)

am3zzn00002591

Component Part And Function

Item

Function

Car-navigation unit

•  Reads the data (map, voice and other) from the SD card of Navigation Map data.

•  Calculates and displays vehicle position from various signals.

•  Calculates the route to the destination.

•  Navigates the driver to the destination using the map screen and/or voice.

•  Displays the screen (menus, maps and other screens) by steering switch operation.

GPS antenna

•  Receives GPS signal from satellites.

Antenna feeder

•  Sends GPS signal to the car-navigation unit.

Gyro sensor (inside of the car-navigation unit)

•  Sends yaw-rate signal to the car-navigation unit.

Instrument cluster

•  Sends vehicle speed signal to the car-navigation unit.

Front door speaker

•  Outputs voice guidance.

SD card of Navigation Map data

•  Contains map information data of each country.

•  Contains voice data used to guide the route.

•  Contains route information data to search for the route.

Steering switch

•  Switches the navigation system mode.

Item	Function
Car-navigation unit	• Reads the data (map, voice and other) from the SD card of Navigation Map data. • Calculates and displays vehicle position from various signals. • Calculates the route to the destination. • Navigates the driver to the destination using the map screen and/or voice. • Displays the screen (menus, maps and other screens) by steering switch operation.
GPS antenna	• Receives GPS signal from satellites.
Antenna feeder	• Sends GPS signal to the car-navigation unit.
Gyro sensor (inside of the car-navigation unit)	• Sends yaw-rate signal to the car-navigation unit.
Instrument cluster	• Sends vehicle speed signal to the car-navigation unit.
Front door speaker	• Outputs voice guidance.
SD card of Navigation Map data	• Contains map information data of each country. • Contains voice data used to guide the route. • Contains route information data to search for the route.
Steering switch	• Switches the navigation system mode.
