ANTENNA CONSTRUCTION
id092000103200

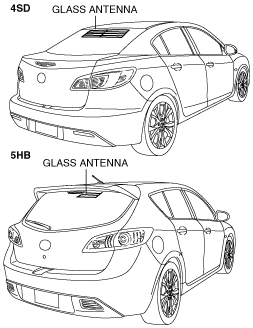

Glass Antenna
• A glass antenna with high noise resistance has been adopted inside the rear window glass.
4SD
-
― FM/AM or FM/AM/RDS (radio data system)
5HB
-
― With RDS (radio data system)
Center Roof Antenna (5HB)
• Installed to the center of the vehicle rear.
• The center roof antenna has a built-in antenna amplifier.
• Radio waves received from the roof antenna are sent to the audio unit.
-
― FM/AM or FM/AM/GPS (with car-navigation system and VIN:JMZ**)

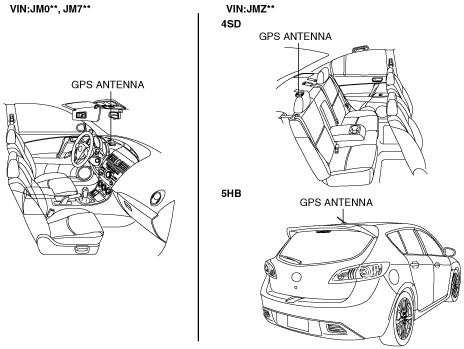

GPS Antenna (With car-navigation system)
• A small-size GPS antenna with excellent reception functionality has been adopted.
5HB (VIN:JMZ**)
-
― GPS antenna is integrated with the center roof antenna.
