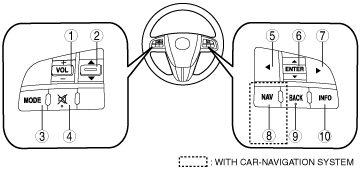

am3zzn00002363
STEERING SWITCH FUNCTION
id092000112400
Without Bluetooth System
am3zzn00002363
|
|
No. |
Name |
Function |
|---|---|---|
|
1
|
Volume switch
|
Audio volume adjustment
|
|
2
|
Seek switch
|
Selects radio stations or track up/down
|
|
3
|
Mode switch
|
Switch each mode setting (audio system)
|
|
4
|
Mute switch
|
Mute audio
|
|
5
|
Left switch
|
The selection cursor can be moved to the left.
|
|
6
|
Enter (up/down) switch
|
• Switch each mode setting
• Determines each mode setting
|
|
7
|
Right switch
|
The selection cursor can be moved to the right.
|
|
8*
|
Navi switch
|
Switches the navigation system mode.
|
|
9
|
BACK switch
|
Return to the previous condition
|
|
10
|
INFO switch
|
Switch each mode setting (multi information display)
|
With Bluetooth System

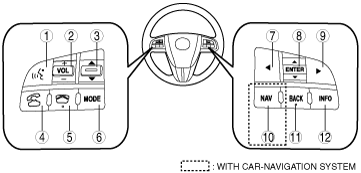

am3uun00001047
|
|
No. |
Name |
Function |
|---|---|---|
|
1
|
Talk switch
|
• Launches the Bluetooth system
• Performs car-navigation system operation by voice. (with car-navigation system)
|
|
2
|
Volume switch
|
Audio volume adjustment
|
|
3
|
Seek switch
|
Selects radio stations or track up/down
|
|
4
|
Pick-up switch
|
Receives a phone call
|
|
5
|
Hang-up switch
|
Hangs up a phone call
|
|
6
|
Mode switch
|
Switch each mode setting (audio system)
|
|
7
|
Left switch
|
• The selection cursor can be moved to the left.
• The map screen can be scrolled to the left.*
• The current location arrow on the map can be rotated left.*
|
|
8
|
Enter (up/down) switch
|
• Switch each mode setting
• Determines each mode setting
|
|
9
|
Right switch
|
• The selection cursor can be moved to the right.
• The map screen can be scrolled to the right.*
• The current location arrow on the map can be rotated right.*
|
|
10*
|
Navi switch
|
Switches the navigation system mode.
|
|
11
|
BACK switch
|
Return to the previous condition
|
|
12
|
INFO switch
|
Switch each mode setting (multi information display)
|
