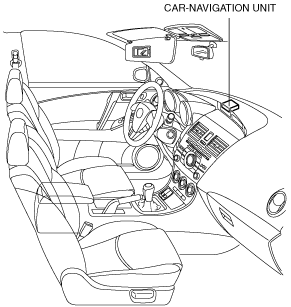

CAR-NAVIGATION UNIT CONSTRUCTION
id092000131100
am3uun00000947
|
Terminal Layout and Signal
Car-navigation unit
|
Terminal |
Signal |
|
|---|---|---|
 |
1A
|
B+
|
|
1B
|
Illumination (-)
|
|
|
1C
|
ACC
|
|
|
1D
|
—
|
|
|
1E
|
IG1
|
|
|
1F
|
—
|
|
|
1G
|
—
|
|
|
1H
|
PAD indicator
|
|
|
1I
|
Voice guidance (+)
|
|
|
1J
|
Voice guidance (-)
|
|
|
1K
|
—
|
|
|
1L
|
—
|
|
|
1M
|
—
|
|
|
1N
|
Steering switch 1
|
|
|
1O
|
Audio mute
|
|
|
1P
|
Steering switch 2
|
|
|
1Q
|
Steering switch GND
|
|
|
1R
|
—
|
|
|
1S
|
Clock switch GND
|
|
|
1T
|
Clock switch
|
|
|
1U
|
Vehicle speed signal
|
|
|
1V
|
CAN_H
|
|
|
1W
|
GND
|
|
|
1X
|
CAN_L
|
|
 |
2A
|
GND
|
GPS antenna
|
Terminal |
Signal |
|
|---|---|---|
 |
A
|
GPS signal
|
|
B
|
GND
|
|
RDS (radio data system) jack
|
Terminal |
Signal |
|
|---|---|---|
 |
A
|
RDS signal
|
|
B
|
GND
|
|
