AUDIO UNIT DISASSEMBLY/ASSEMBLY

id092000800800

Caution

•  When disassembling the audio unit, it could get scratched if it is placed directly on the ground. When disassembling the audio unit, spread a soft cloth underneath to perform the work.

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

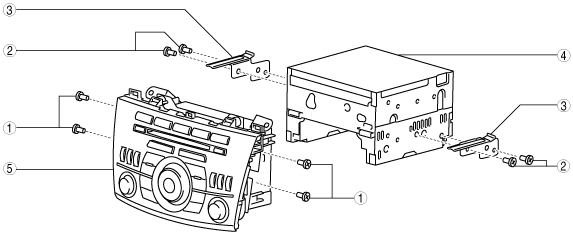

am3uuw00002692

1	Screw A
2	Screw B
3	Bracket
4	Audio unit
5	Audio panel
