AUDIO AMPLIFIER REMOVAL/INSTALLATION

id092000801100

1.  Slide the front seat (RH) rearward.

2.  Remove the cover.

am3uuw00002693

3.  Remove the bolt.

4.  Detach the clips and set the vehicle wiring harness aside.

5.  Slide the front seat (RH) forward.

6.  Disconnect the negative battery cable.

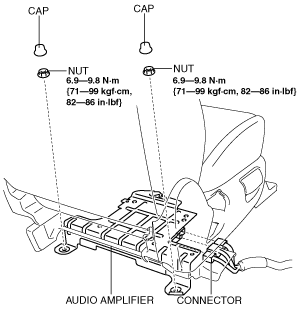

7.  Remove the cap.

am3uuw00002694

8.  Remove the nut.

9.  Disconnect the connector.

10.  Remove the audio amplifier.

11.  Install in the reverse order of removal.
