FRONT DOOR SPEAKER REMOVAL/INSTALLATION

id092000802200

1.  Disconnect the negative battery cable.

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

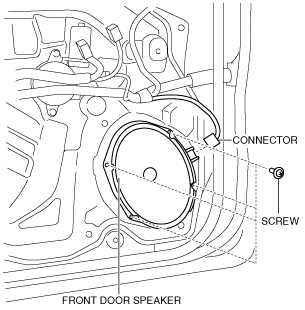

Without Bose^®

am3uuw00002696

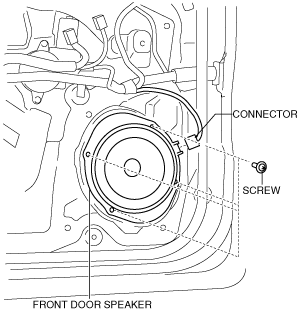

With Bose^®

am3uuw00002695

5.  Remove the screw.

6.  Remove the front door speaker in the direction of the arrow shown in the figure.

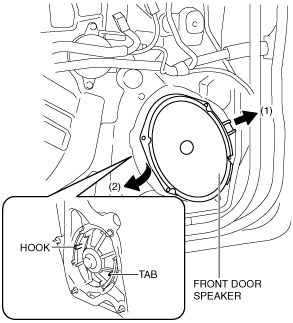

Without Bose^®

am3uuw00002698

With Bose^®

am3uuw00002697

7.  Install in the reverse order of removal.
