REAR DOOR SPEAKER REMOVAL/INSTALLATION

id092000805000

1.  Disconnect the negative battery cable.

2.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

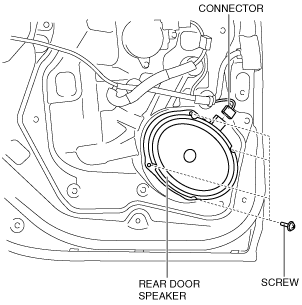

Without Bose^®

am3uuw00002830

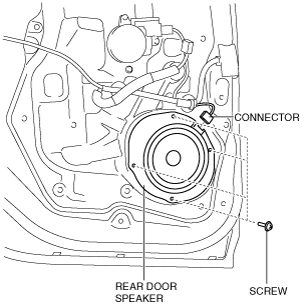

With Bose^®

am3uuw00002829

4.  Remove the screw.

5.  Remove the rear door speaker in the direction of the arrow shown in the figure.

Without Bose^®

am3uuw00002832

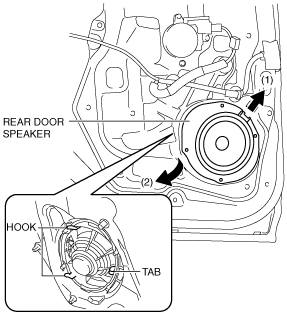

With Bose^®

am3uuw00002831

6.  Install in the reverse order of removal.
