BASS-BOX REMOVAL/INSTALLATION

id092000815200

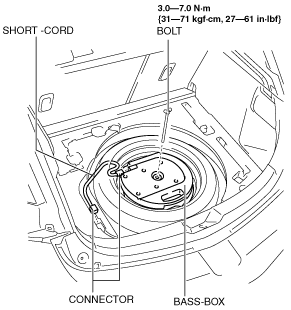

1.  Disconnect the negative battery cable.

2.  Disconnect the connector.

am3uuw00002842

3.  Remove the short-cord.

4.  Remove the bolt.

5.  Remove the bass-box.

6.  Install in the reverse order of removal.
