STEERING SWITCH INSPECTION

id092000822400

Without Bluetooth System

1.  Disconnect the negative battery cable and wait for 1 min or more.

2.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

3.  Disconnect the clock spring connector (part wiring harness-side).

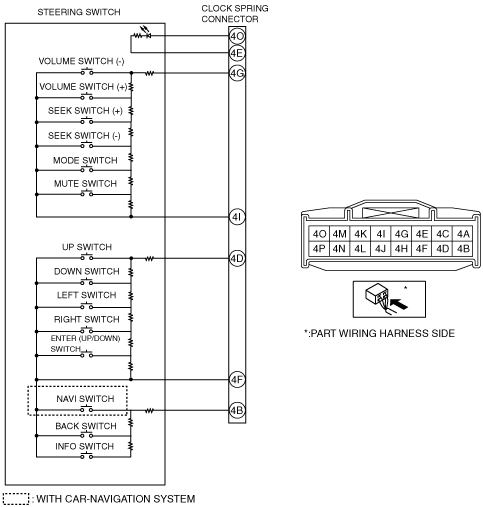

4.  Verify the resistance between the clock spring connector terminals.

am3zzw00006080

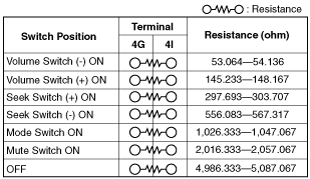

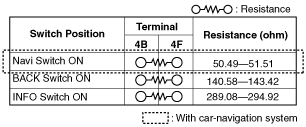

•  If not within the specification, replace the steering switch.

am3zzw00009810

am3zzw00007675

am3zzw00006081

5.  Apply battery positive voltage to clock spring connector terminal 4O, and connect terminal 4E to ground.

am3zzw00009938

6.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the steering switch.

With Bluetooth System

1.  Disconnect the negative battery cable and wait for 1 min or more.

2.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

3.  Disconnect the clock spring connector (part wiring harness-side).

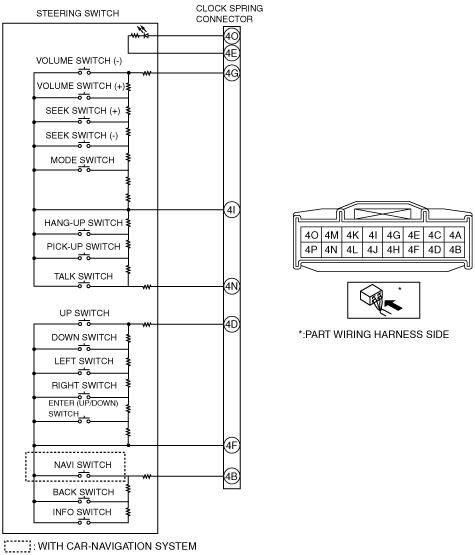

4.  Verify the resistance between the clock spring connector terminals.

am3uuw00002878

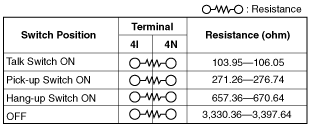

•  If not within the specification, replace the steering switch.

am3zzw00009811

am3zzw00009812

am3zzw00007675

am3zzw00006081

5.  Apply battery positive voltage to clock spring connector terminal 4O, and connect terminal 4E to ground.

am3zzw00009938

6.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the steering switch.
