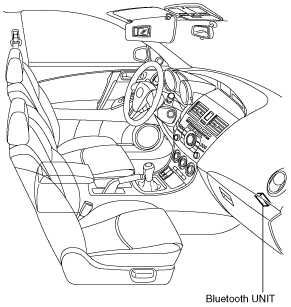

Bluetooth UNIT CONSTRUCTION
id092000843100
am3uun00000782
|
Terminal Layout and Signal
|
Terminal |
Signal |
|
|---|---|---|
 |
A
|
Mic input (+)
|
|
B
|
Mic input (-)
|
|
|
C
|
Mic B+
|
|
|
D
|
Mic shield
|
|
|
E
|
Mic detect
|
|
|
F
|
Steering switch
|
|
|
G
|
—
|
|
|
H
|
—
|
|
|
I
|
TEL (+)
|
|
|
J
|
TEL (-)
|
|
|
K
|
Signal ground
|
|
|
L
|
Audio output shield
|
|
|
M
|
Audio output LH (+)
|
|
|
N
|
Audio output RH (+)
|
|
|
O
|
—
|
|
|
P
|
—
|
|
|
Q
|
—
|
|
|
R
|
—
|
|
|
S
|
—
|
|
|
T
|
—
|
|
|
U
|
—
|
|
|
V
|
—
|
|
|
W
|
—
|
|
|
X
|
GND
|
|
|
Y
|
CAN_H
|
|
|
Z
|
CAN_L
|
|
|
AA
|
B+
|
|
|
AB
|
ACC
|
|
