AudioPilot®2 MICROPHONE REMOVAL/INSTALLATION

id092000866300

Note

•  AudioPilot^® 2 is a registered trademark of Bose^® Corporation.

1.  Disconnect the negative battery cable.

2.  Disconnect the connector.

3.  Remove the nut.

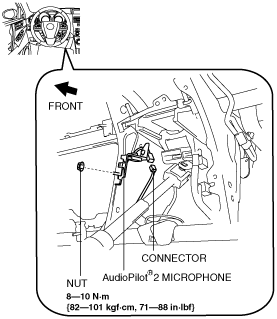

am3uuw00002735

4.  Remove the AudioPilot^® 2 microphone.

5.  Install in the reverse order of removal.
