ANTENNA FEEDER NO.5 REMOVAL/INSTALLATION

id092000888000

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  B-pillar lower trim (RH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(5)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(6)  Tire house trim (RH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the floor covering.

4.  Disconnect the antenna feeder No.2.

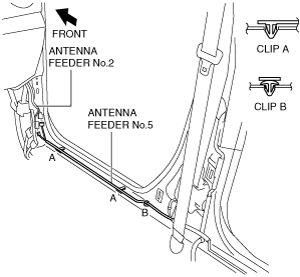

am3zzw00006036

5.  Remove the clips A and B.

6.  Disconnect the antenna feeder No.6.

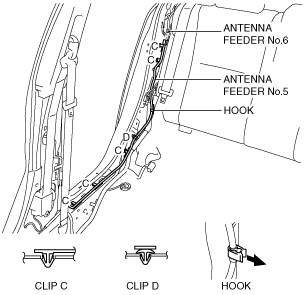

am3zzw00006037

7.  Disconnect the antenna feeder No.5 from the hook.

8.  Remove the clips C and D.

9.  Remove the antenna feeder No.5.

10.  Install in the reverse order of removal.
