PUSH BUTTON START OPERATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
id0921001531z5

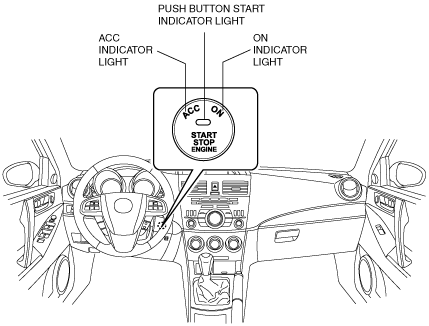

Push Button Start Indicator Light Conditions
• Each indicator light is controlled by the keyless control module or BCM.
Push button start indicator light (Green illuminates)
• Illuminates if the conditions necessary for engine-start are met.
Push button start indicator light (Red illuminates)
• It illuminates when a malfunction is detected or the engine cannot be started.
Push button start indicator light (Red flashes)
• It illuminates when a malfunction is detected.(Back-up mode)
ACC indicator light
• Indicates that the ignition is in the ACC position.
ON indicator light
• Indicates that the ignition is switched on.
Steering Lock Operation
• The steering lock is locked if a door is opened with the ignition off.
