POWER SYSTEMS OUTLINE
id092100528600
Special Features
|
Improved marketability
|
Push button start system adopted (with advanced keyless entry and push button start system)
|
|
Improved durability
|
• Cartridge-type adopted for relay
• Blade-type and cartridge-type adopted for fuse
|
Structural View

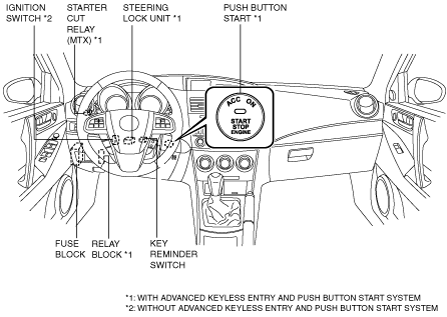

L.H.D.
am3zzn00001945
|

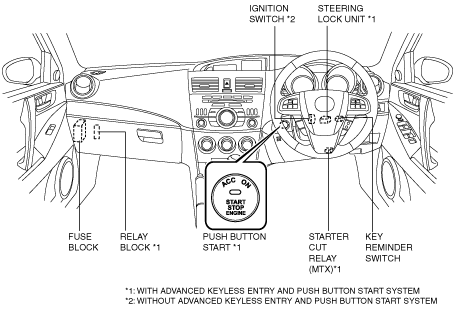

R.H.D.
am3zzn00002009
|
Relay Location

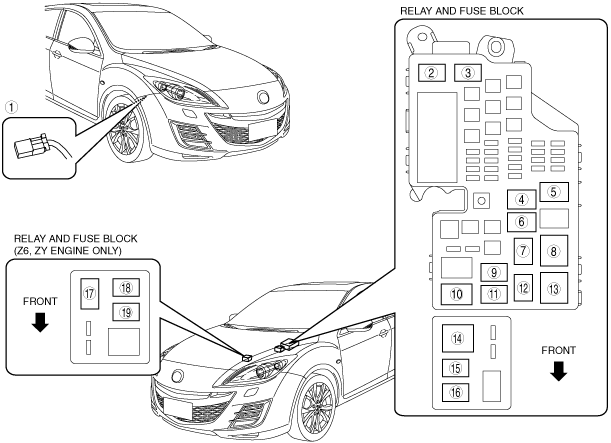

Z6, ZY, LF, L5
am3zzn00002901
|
|
1
|
Front fog light relay
|
|
2
|
Heated windshield relay No.1
|
|
3
|
Headlight relay (LO)
|
|
4
|
AT main relay
|
|
5
|
Headlight relay (HI)
|
|
6
|
Fuel pump relay
|
|
7
|
Starter relay
|
|
8
|
Blower relay
|
|
9
|
Horn relay
|
|
10
|
TNS relay
|
|
11
|
Rear window defroster relay
|
|
12
|
A/C relay
|
|
13
|
Main relay
|
|
14
|
Heated windshield relay No.2
|
|
15
|
Headlight cleaner relay
|
|
16
|
Rear fog light relay
|
|
17
|
Cooling fan relay No.1
|
|
18
|
Cooling fan relay No.3
|
|
19
|
Cooling fan relay No.2
|
L3 Turbo
am3zzn00002897
|
|
1
|
Front fog light relay
|
|
2
|
Fuel injector relay
|
|
3
|
Headlight relay (LO)
|
|
4
|
Fuel pump speed control relay
|
|
5
|
Headlight relay (HI)
|
|
6
|
Fuel pump relay
|
|
7
|
Starter relay
|
|
8
|
Blower relay
|
|
9
|
Horn relay
|
|
10
|
TNS relay
|
|
11
|
Rear window defroster relay
|
|
12
|
A/C relay
|
|
13
|
Main relay
|
|
14
|
Heated windshield relay No.2
|
|
15
|
Headlight cleaner relay
|
|
16
|
Rear fog light relay
|
|
17
|
Heated windshield relay No.1
|

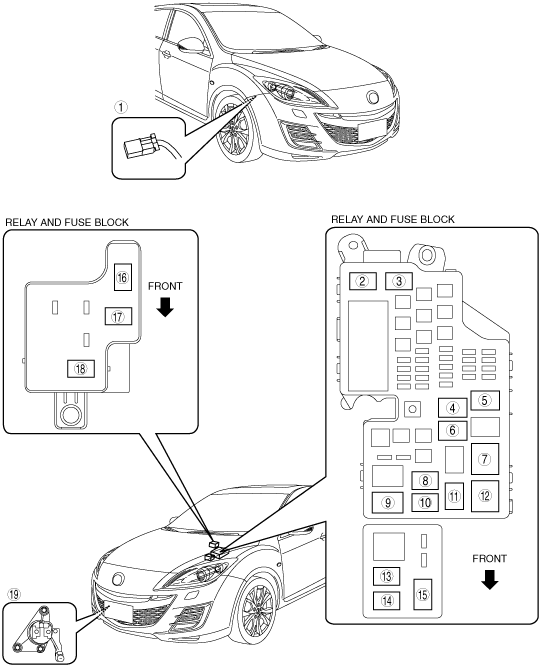

MZR 2.0 DISI i-stop
am3zzn00002902
|
|
1
|
Front fog light relay
|
|
2
|
Fuel injector relay
|
|
3
|
Headlight relay (LO)
|
|
4
|
Heated windshield relay No.2
|
|
5
|
Headlight relay (HI)
|
|
6
|
Fuel pump relay
|
|
7
|
Blower relay
|
|
8
|
Horn relay
|
|
9
|
TNS relay
|
|
10
|
Rear window defroster relay
|
|
11
|
A/C relay
|
|
12
|
Main relay
|
|
13
|
Headlight cleaner relay
|
|
14
|
Rear fog light relay
|
|
15
|
Heated windshield relay No.1
|
|
16
|
Starter relay
|
|
17
|
Charge relay
|
|
18
|
Power drive relay
|
|
19
|
Power relay
|

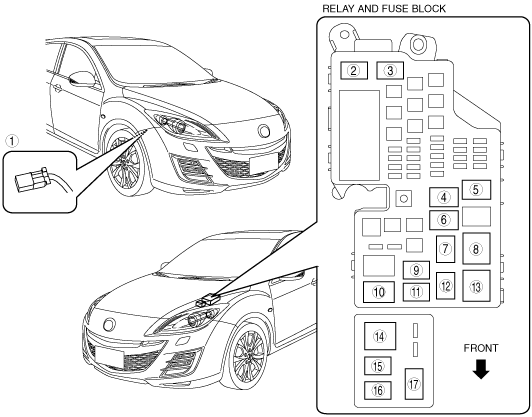

MZ-CD 1.6 (Y6), MZR-CD 2.2
am3zzn00002903
|
|
1
|
Front fog light relay
|
|
2
|
Heated windshield relay No.1
|
|
3
|
Headlight relay (LO)
|
|
4
|
Fuel warmer relay (MZ-CD 1.6 (Y6))
|
|
5
|
Headlight relay (HI)
|
|
6
|
Heated windshield relay No.2
|
|
7
|
Starter relay
|
|
8
|
Blower relay
|
|
9
|
Horn relay
|
|
10
|
TNS relay
|
|
11
|
Rear window defroster relay
|
|
12
|
A/C relay
|
|
13
|
Main relay
|
|
14
|
Glow relay (Except MZ-CD 1.6 (Y6) (EURO5 emission level))
|
|
15
|
Headlight cleaner relay
|
|
16
|
Rear fog light relay
|
|
17
|
Charge air cooler fan relay (MZ-CD 1.6 (Y6) (EURO4 emission level))
|
